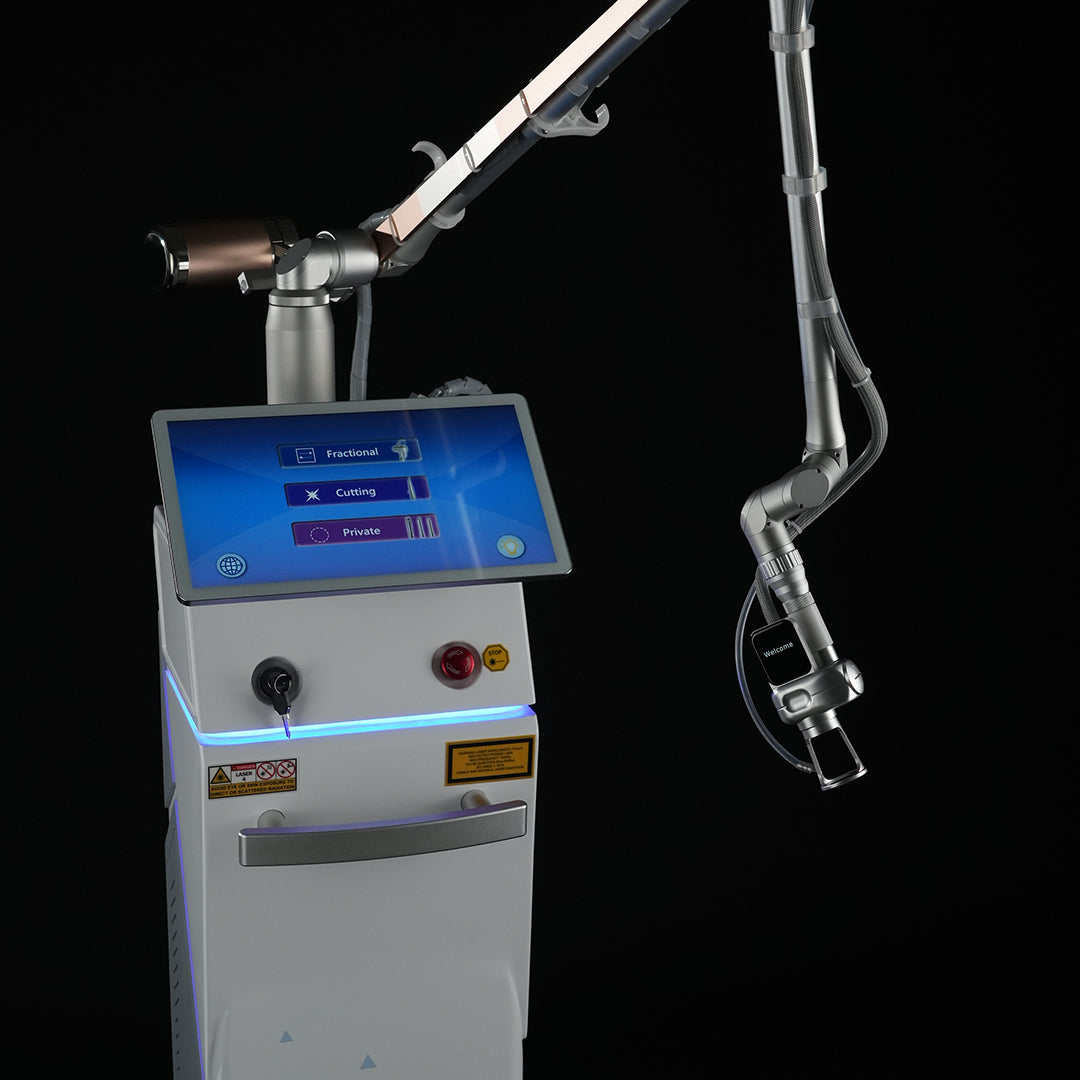

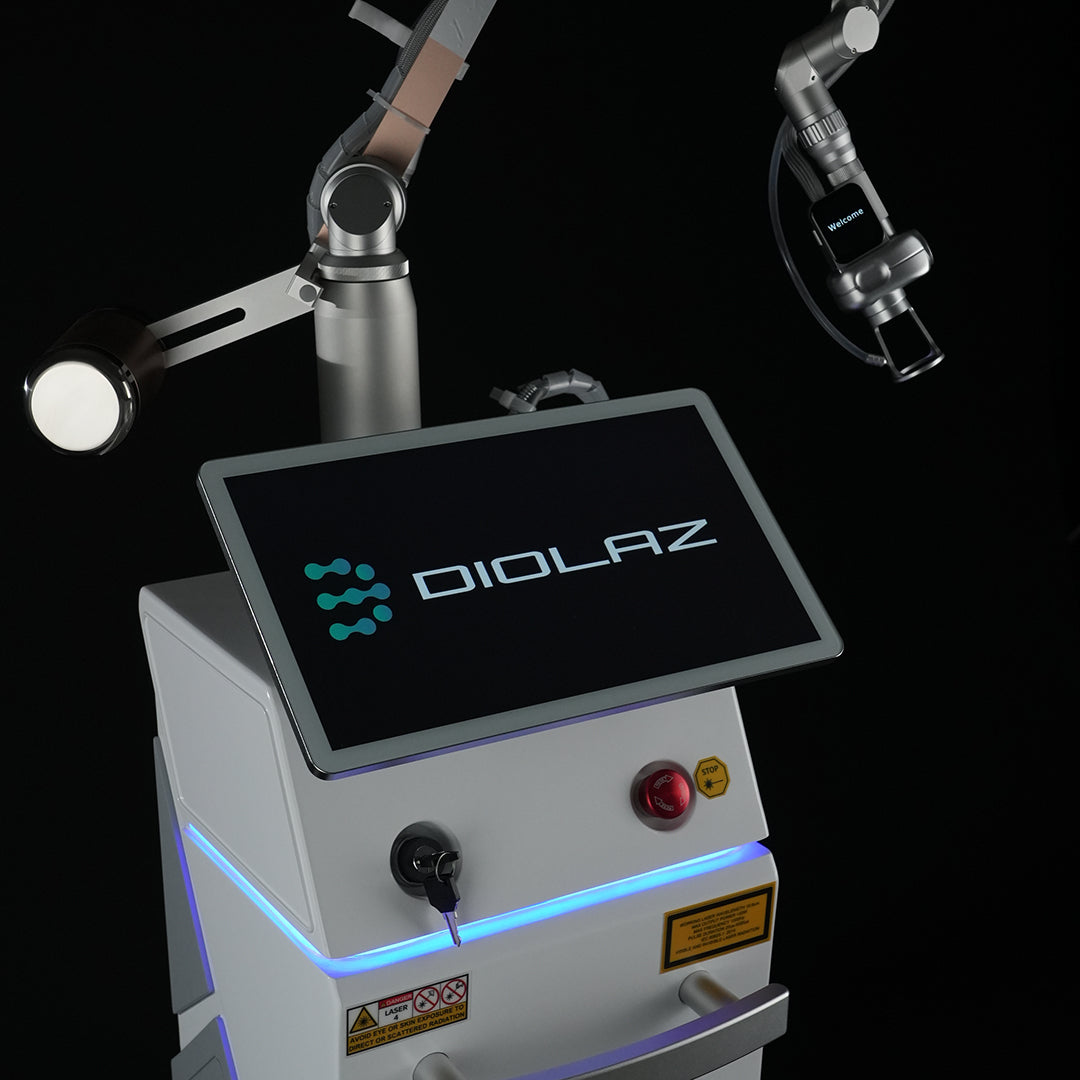

DioLaz Fractional CO₂ Laser Machine

DioLaz Fractional CO2 Laser Machine is a Health Canada licensed, MDL certified Class III medical device, designed for advanced skin resurfacing, minor surgical procedures, and gynecological applications. It combines a Fractional 10,600 nm Carbon Dioxide Laser with precision optics and multiple handpieces to treat a wide range of conditions – from wrinkles and scars to excising lesions and performing intimate rejuvenation – all with minimal patient downtime. This device’s three-in-one functionality (Fractional, Surgical, and Intimate modes) offers clinics a comprehensive solution while adhering to strict safety and efficacy standards suitable for Canadian medical practices.

Technical Specifications

• Wavelength: 10,600 nm (CO2 laser, RF-excited tube)
• Laser Emission Modes: Continuous, Pulsed, Fractional (ultra-pulse)
• Laser Output Power: 40 W (max. optical power)
• System Power: 1000 W (power supply for stable operation)

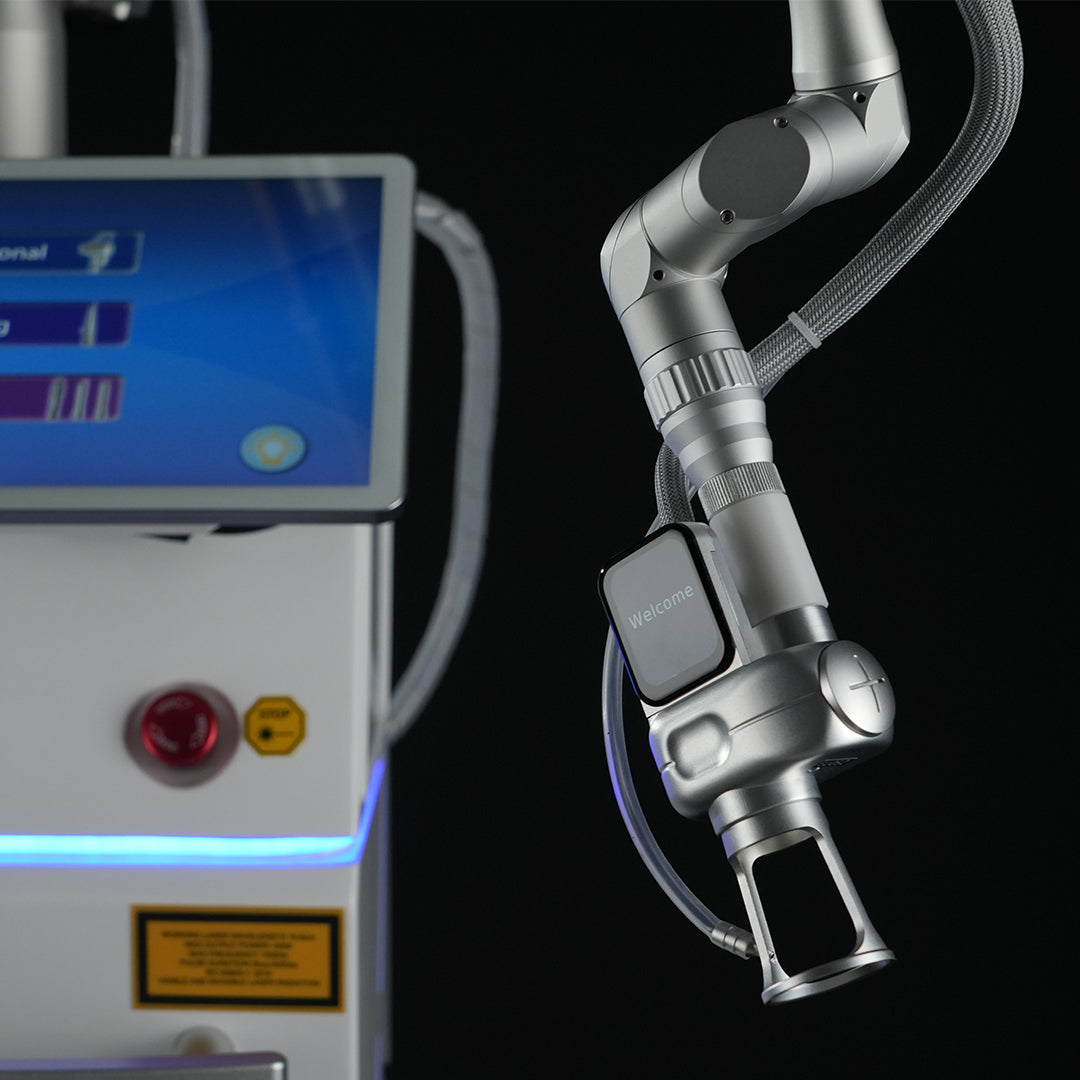

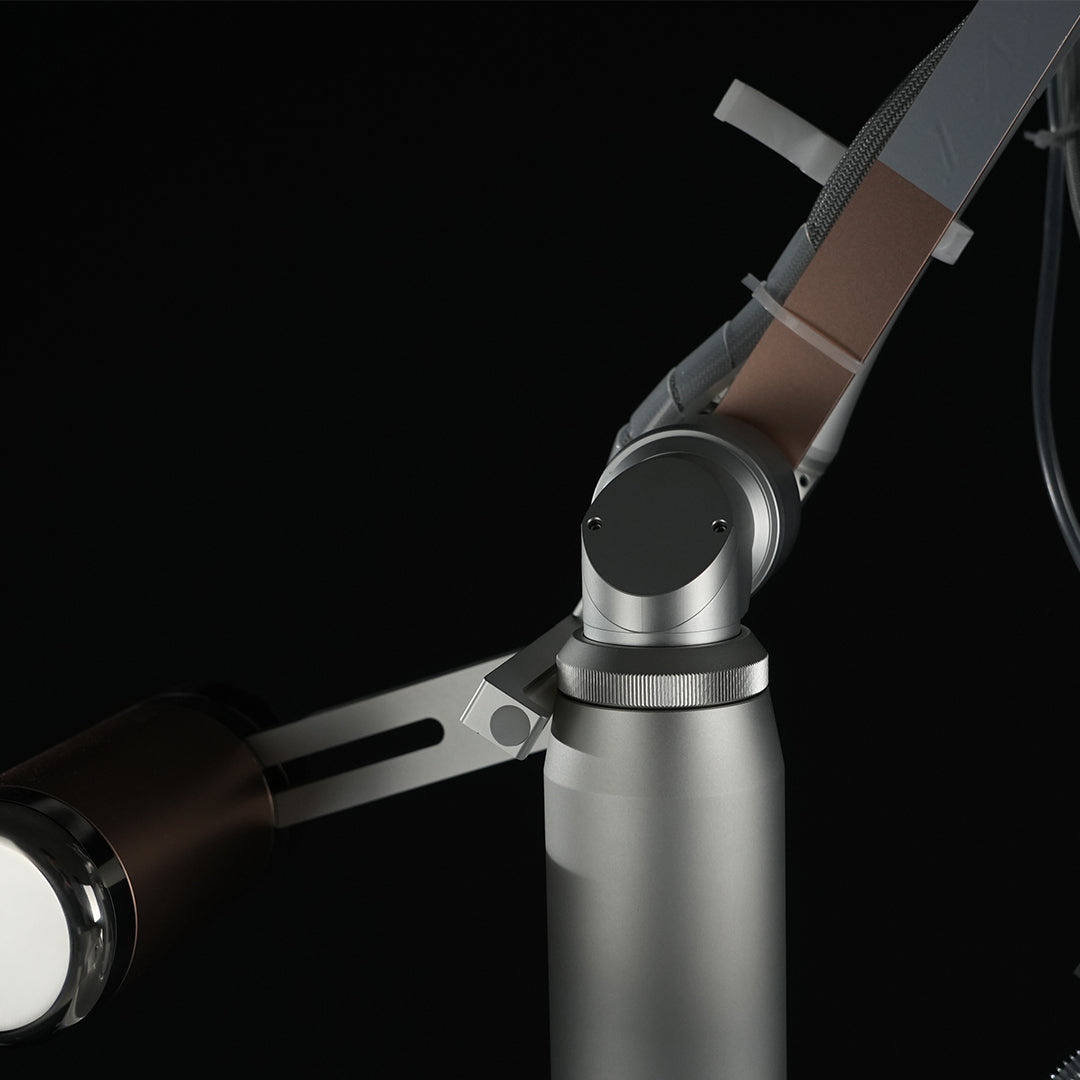

• Beam Delivery: 7-joint articulated arm with adjustable focal lenses
• Aiming Beam: 650 nm red diode laser
• Scanner Spot Size: 0.1–2 mm (adjustable)

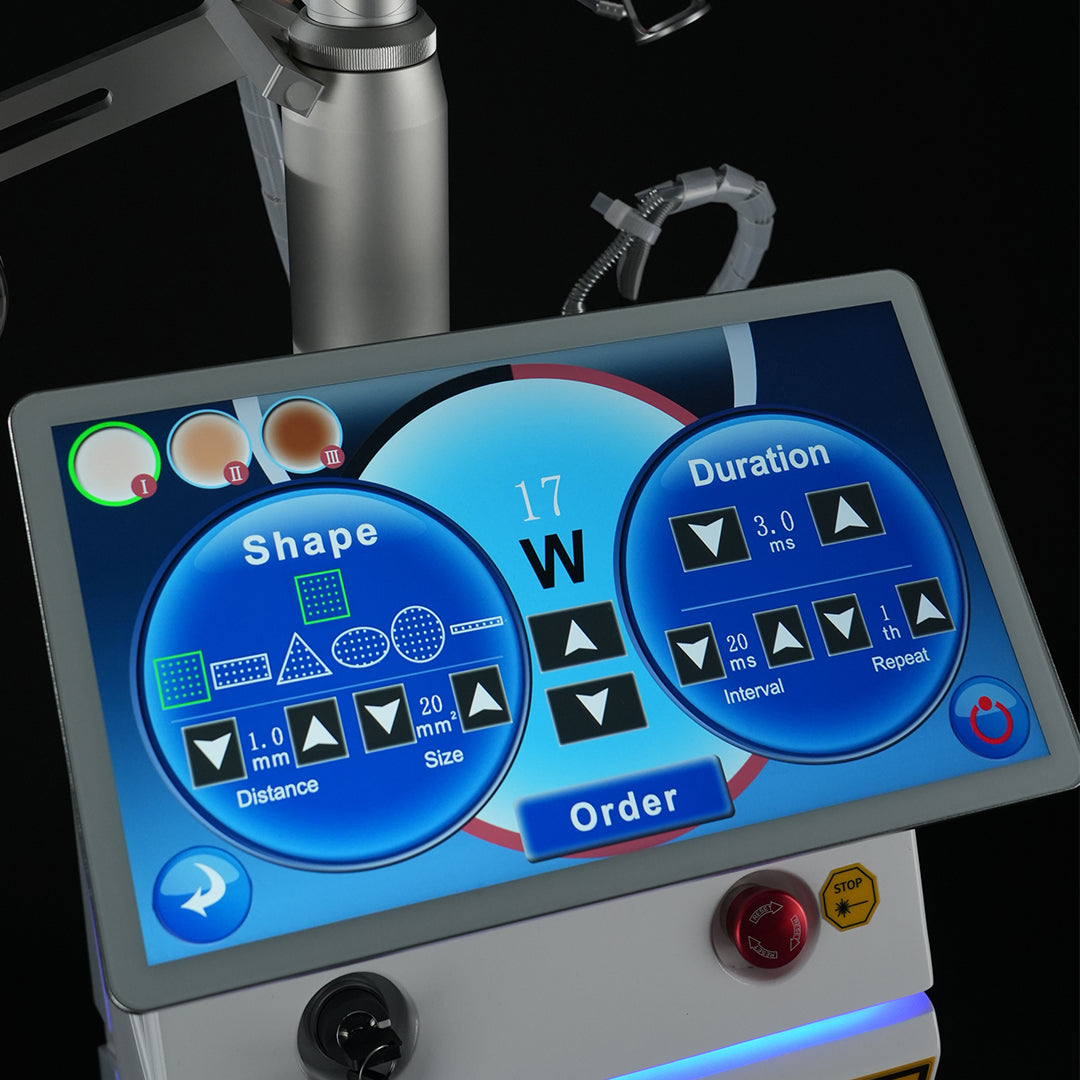

• Scan Patterns: Multiple shapes (circle, square, triangle, etc.) with random/sequential firing
• Cooling System: Air cooling for laser tube and skin surface
• Electrical Requirements: 110–240 V AC, 50/60 Hz

(All specifications are subject to manufacturer tolerances and Canadian regulatory approvals.)

Key Benefits

Ablative fractional technology for skin resurfacing – effectively treats wrinkles, acne scars, and pigmentation with controlled micro-injury zones that spur collagen remodeling (achieving noticeable rejuvenation while leaving surrounding tissue intact for faster healing)

Minimal downtime and discomfort – Fractional CO2 treatment yields shorter recovery than fully ablative lasers, with limited erythema and low risk of complications, allowing patients to return to normal activities sooner

Multi-purpose 3-in-1 system – includes dedicated handpieces for fractional skin treatment, surgical cutting, and gynecological therapy, expanding the scope of services a clinic can offer with one device

Precision surgical capability – the Surgical Probe includes 50 mm and 100 mm optical tips for precise removal of warts, nevus pigmentation, and other skin lesions, with excellent hemostasis (minimal bleeding or scarring) during excisions

Intimate health treatments – the specialized Intimate Probe features 3 interchangeable configurations to support vaginal tightening, vulvar brightening (pigment reduction), and labial stimulation for tissue rejuvenation, providing a non-surgical option for women’s intimate wellness

Clinical Applications

Dermatology & Aesthetics

In Fractional mode, the CO2 laser creates an array of microscopic thermal columns in the skin, triggering natural healing and collagen regeneration. This is ideal for skin resurfacing procedures – improving fine lines, deep wrinkles, acne scars, stretch marks, and uneven skin tone. Patients typically experience a smoother, tighter complexion after a series of treatments, with visible improvement in texture and pigment irregularities. Healthy skin is spared between laser micro-spots, which minimizes epidermal damage and promotes rapid recovery. With proper post-care, most fractional laser patients enjoy significant rejuvenation results with only a few days of mild redness or peeling (dramatically less downtime compared to traditional fully ablative CO2 lasers).

Surgery (Cutting & Ablation)

In surgical mode, the CO2 laser delivers a focused continuous beam for precise cutting and ablation of soft tissues. This enables minor surgical procedures in-office – for example, excising benign skin lesions (such as fibromas, skin tags, and moles) or ablating hypertrophic scars – with minimal thermal damage to surrounding tissue. The laser’s instantaneous cauterizing effect means treatments are largely bloodless and low-pain. The included dual-tip surgical handpiece (with 50 mm and 100 mm focal length tips) allows the practitioner to adjust spot size and depth for fine control. This dual-focus system is especially useful for the precision removal of lesions like warts and pigmented nevi (nevus pigmentations), ensuring complete removal while preserving healthy skin. Overall, the surgical CO2 laser mode offers dermatologic surgeons an accurate, sterile tool for incisions and coagulation, often eliminating the need for sutures on very small excisions.

Gynecology & Intimate Wellness

For gynecological and intimate applications, this CO2 laser system provides a non-surgical alternative for addressing common concerns of vaginal atrophy, laxity, and external pigmentation. The Intimate Probe comes with three specialized treatment heads that enable multiple modes of therapy – including internal vaginal tightening, external vulvar brightening for hyperpigmentation (intimate skin lightening), and labial tissue stimulation for improved blood flow and collagen remodeling. In vaginal tightening mode, the laser energy is delivered 360° inside the vaginal canal, creating controlled micro-injuries that stimulate the mucosal tissue to thicken and regain elasticity. Patients often report enhanced firmness and natural lubrication as collagen and epithelial regeneration improve the vaginal wall integrity. For external treatments, the laser can gently resurface the vulvar or labial skin to reduce dark pigmentation (for a more even tone) and to rejuvenate the labia by boosting circulation. These intimate rejuvenation procedures are quick (often 15–30 minutes) and require only topical anesthesia, making them comfortable with minimal downtime for the patient.

(Note: Providers should ensure patients are appropriate candidates for these treatments, and inform that individual results may vary. Clinical use in gynecology should align with current medical guidelines.)

Additional Applications

Beyond the primary fields above, the CO2 Fractional Laser Machine can be utilized in other medical specialties. In Otolaryngology (ENT), it serves as a precise tool for removing polyps or papillomas and for soft-palate tightening procedures. In Proctology, Fractional CO2 lasers have been used to treat anal fissures and hemorrhoids with minimal invasiveness. The system’s versatility extends to any situation requiring controlled ablation or resurfacing of tissue with high precision and limited thermal spread. All treatments should be performed by trained professionals, with appropriate laser safety protocols in place.

Summary

DioLaz Fractional CO2 Laser Machine is an indispensable addition to modern cosmetic and surgical practices. Its combination of a 40 W Fractional Laser for skin rejuvenation, a surgical cutting mode for lesion removal, and dedicated gynecological treatment heads makes it a singular platform that can broaden a clinic’s service offerings. Each mode is backed by proven laser technology – yielding effective results in skin remodeling, minor surgeries, and intimate health – all while maintaining patient comfort and safety. This device complies with Canadian medical device regulations and has built-in safety features (emergency stop, password protection, calibrated energy outputs) to ensure reliable operation. By integrating the latest in CO2 laser innovation with user-friendly controls and comprehensive training support, the system enables healthcare professionals to deliver advanced therapies with confidence and precision.

Empower your practice with this Fractional CO2 Laser Machine – a cutting-edge solution for delivering transformative results in dermatology, surgery, and women’s intimate wellness. Each unit comes with full installation, clinical protocols, and ongoing technical support, so your team can immediately start providing treatments that patients will appreciate for their efficacy and minimal downtime.

Included Accessories

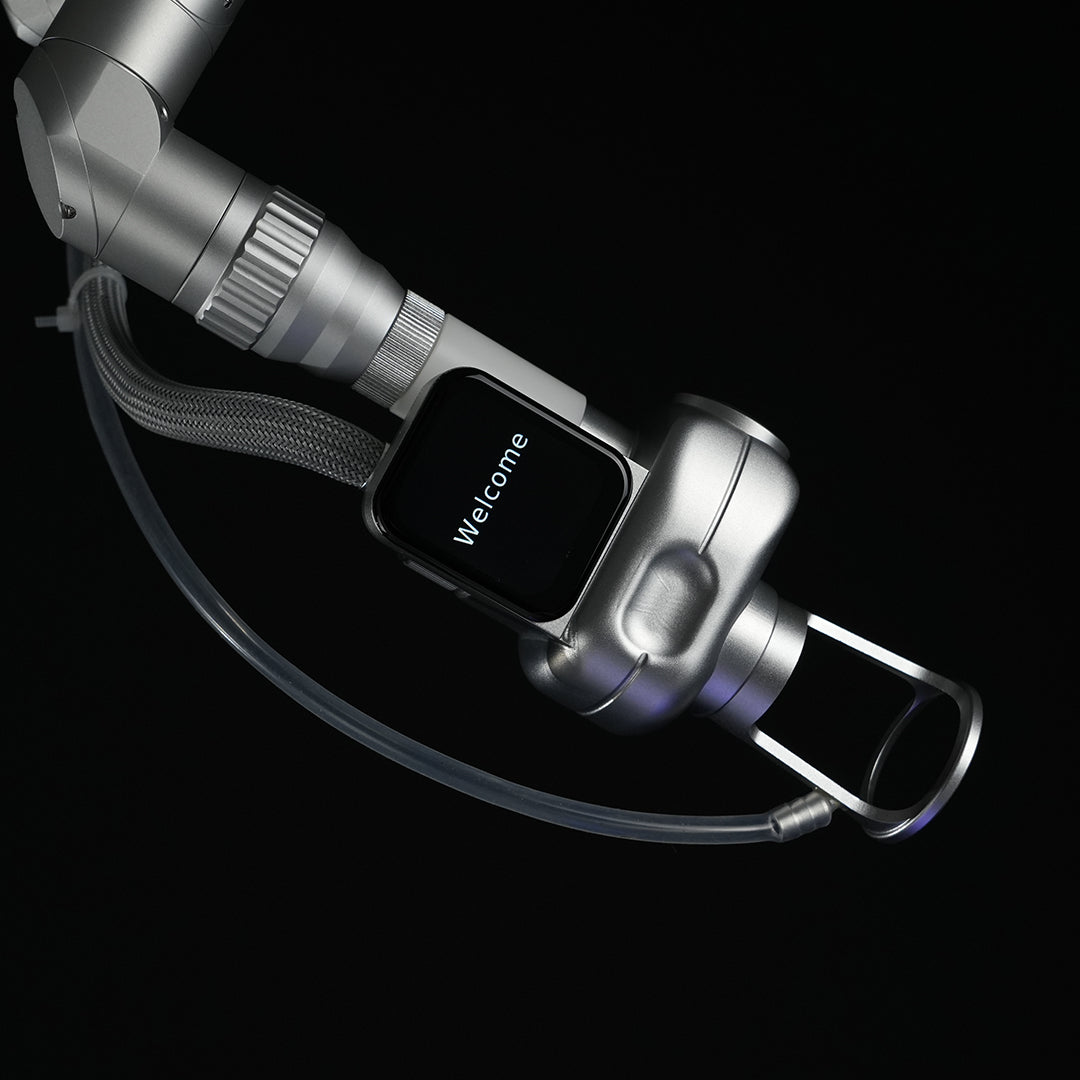

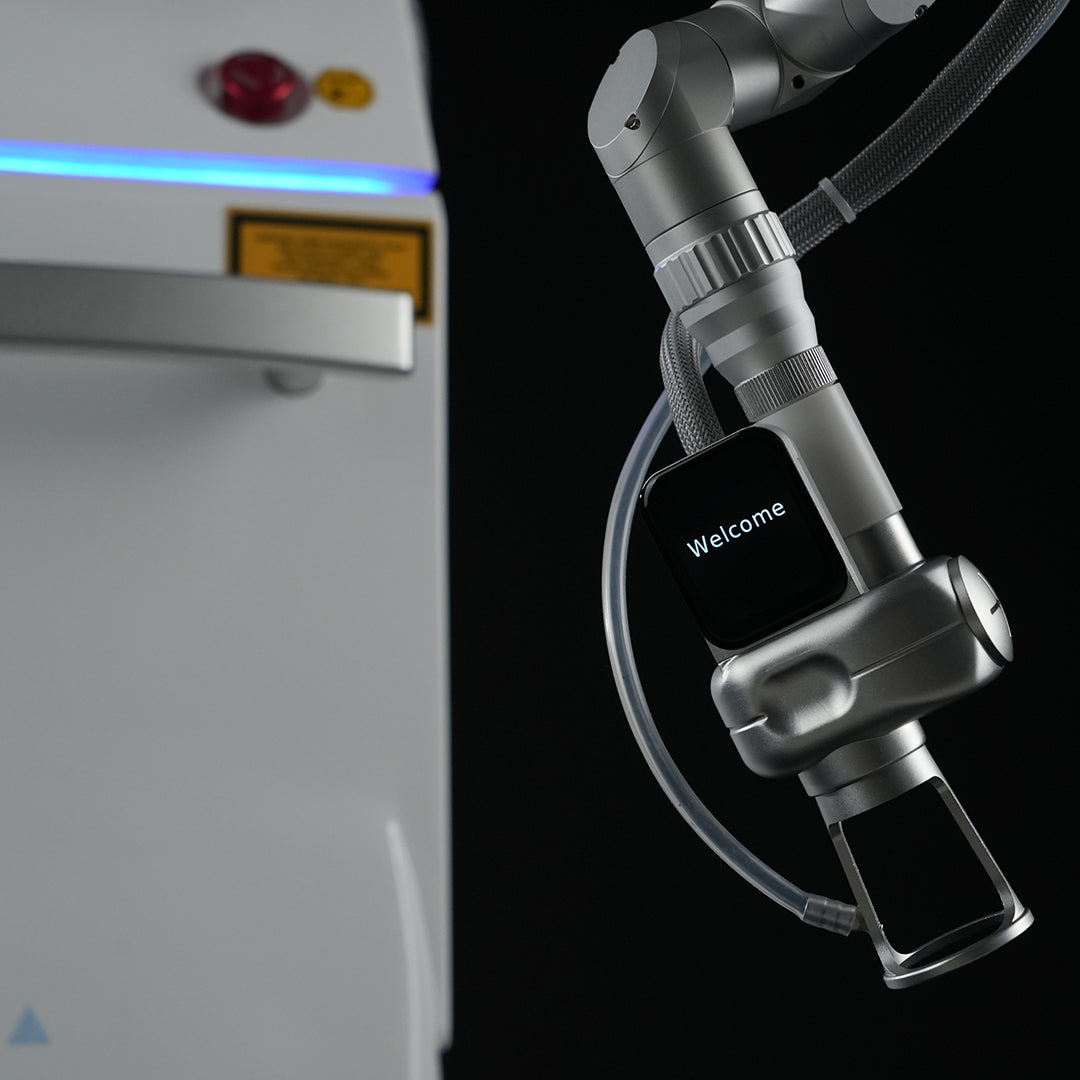

Comes complete with all necessary components for operation and safety: a fractional scanner handpiece, a surgical cutting handpiece, a gynecological treatment handpiece, protective Doctor & Patient Eyewear, foot pedal switch, power cord, and a key-lock on/off switch. (Everything you need to start offering treatments immediately is in the box.)

Health Canada Compliance & Safety

DioLaz Fractional CO2 Laser system is fully licensed by Health Canada as a Class III medical device, which means it has met stringent standards for safety and efficacy in its intended uses. Under Canada’s Medical Devices Regulations and Radiation Emitting Devices Act, the laser has been evaluated to ensure it is safe and effective when used by qualified professionals according to the manufacturer’s directions.

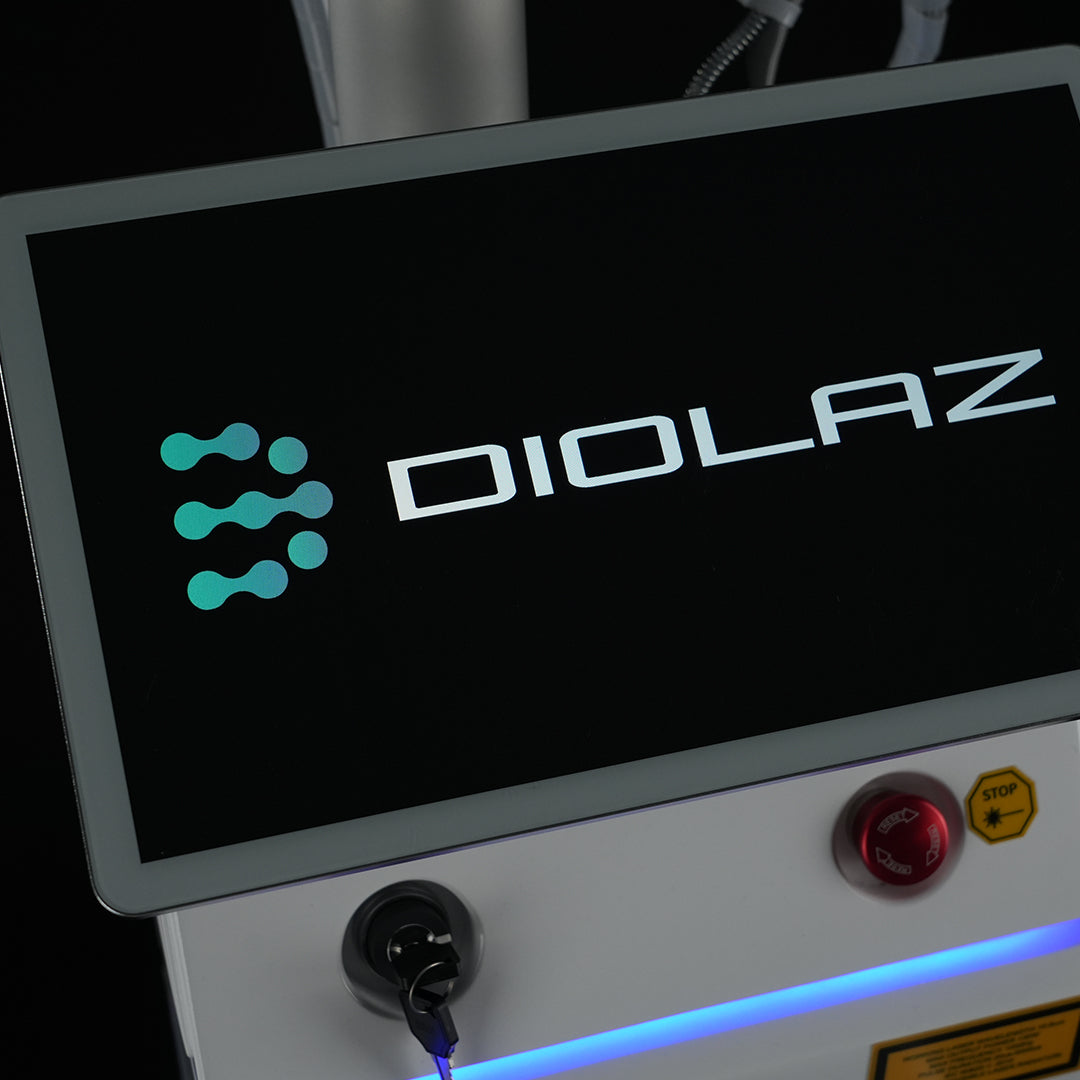

Multiple built-in safety features protect both the operator and patient during use. The system performs an automatic self-diagnostic check at start-up and continuously monitors critical circuits for faults. An emergency shut-off stop button and a keyed lock prevent unauthorized activation of the laser. The device will cut power immediately if any electrical irregularity is detected. Protective eyewear for the practitioner and the patient is supplied and must be worn whenever the laser is in use. Health Canada guidance and our own training protocols mandate that only trained, authorized personnel operate this class of device – we provide in-depth training to every buyer to ensure safe, proper use in your clinic. By adhering to these safety measures and regulations, you can deliver transformative results with minimal risk, maintaining the highest standard of care for your clients.
