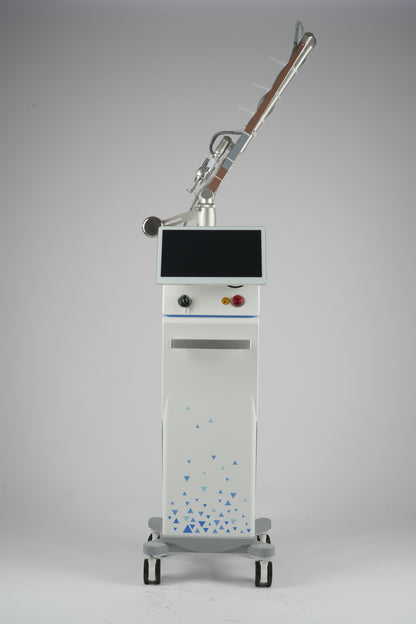

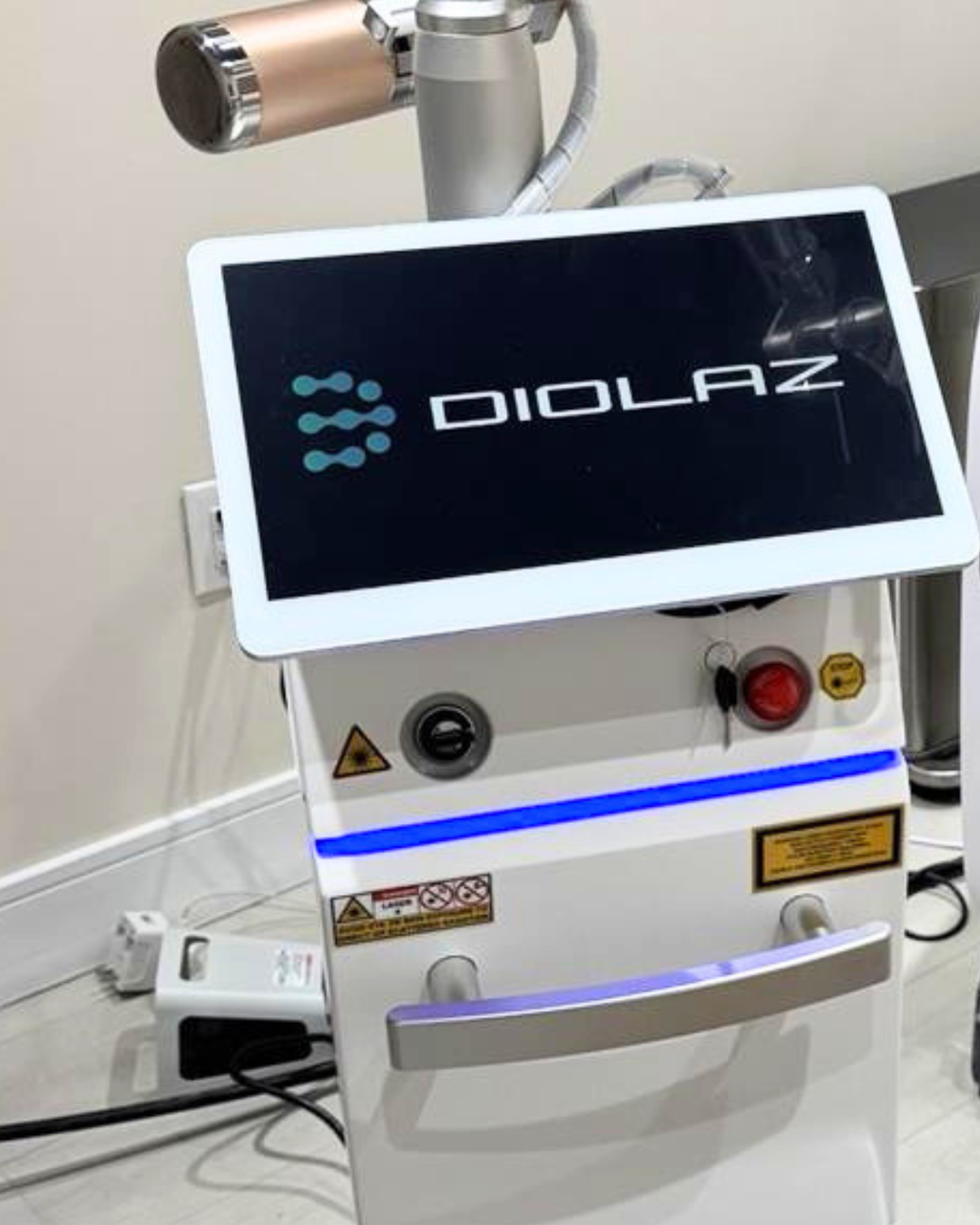

DioLaz Health Canada Licensed Fractional CO2 Laser Skin Resurfacing Machine
$25,890.00 CAD
In stock, ready to ship
Short Description
Pairs well with
Ships within 1-3 business days.
DioLaz Health Canada Licensed Fractional CO2 Laser Skin Resurfacing Machine
1st Gen: Year 2022-2025 / Traditional Handpiece / Order Placement
$25,890.00 CAD
Product details
Description
Health Canada Licensed MDL 114258
Fractional CO₂ Capability, Designed for Professional Clinics
A 10,600 nm professional platform combining fractional resurfacing, focused surgical delivery and specialty probe workflows in one clinic-ready system.
Fractional Resurfacing
Focused Surgical Delivery
Adjustable Parameter Control
10,600 nm
CO₂ laser wavelength
Up to 40 W
Adjustable output power
0.1–2 mm
Adjustable scanner spot
7-Joint
Articulated beam delivery
Health Canada Licensed
Verify Licence →
Class III Medical Device • MDL 114258
Active licence listed in Health Canada’s Medical Devices Active Licence Listing. Licence holder (manufacturer): DioLaz Canada Inc.
Brochure Highlights
One Platform, Multiple Clinical Workflows
Built for professional practices that need treatment versatility, parameter control and a structured workflow without adding a separate console for every application.
Focused Ablation
A dedicated surgical handpiece supports focused cutting, ablation and coagulation workflows for qualified professionals.
Adjustable Delivery
Energy, pulse duration, scan density and spot characteristics can be selected to match the planned procedure and treatment endpoint.
Clinic Workflow
Touchscreen operation, articulated beam delivery, an aiming beam and foot-switch control support structured treatment-room use.
Model Selection
Choose the Interface That Fits Your Clinic
The product page offers model-year and handpiece selections. Confirm the intended combination before ordering; only the selected configuration is supplied.
Traditional Handpiece
Centralized parameter entry from the main console for a familiar, streamlined treatment-room workflow.

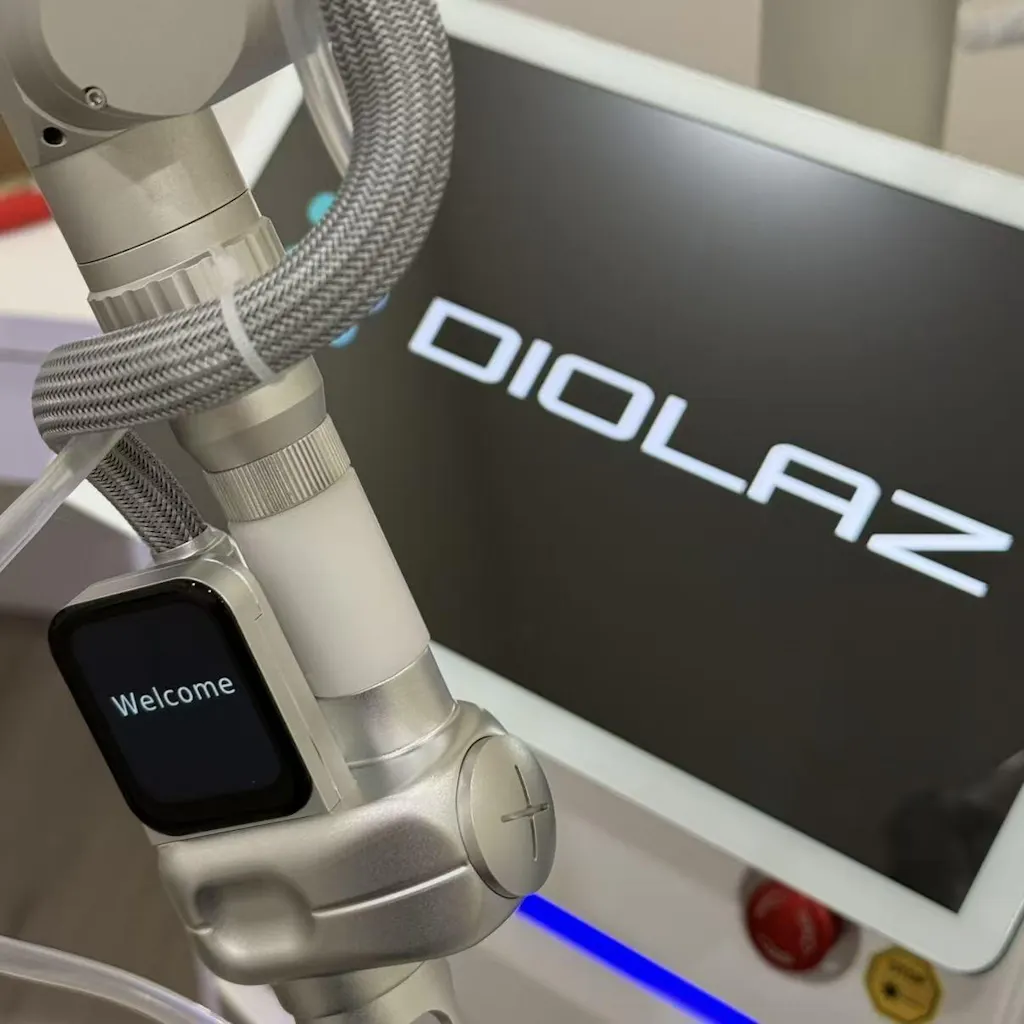

Built-in Touch Screen Handpiece
Adds an at-a-glance interface on the handpiece to support parameter confirmation during treatment.
Images are representative. Product appearance and supplied accessories may vary by selected model, handpiece and order package.
Treatment Technology
Controlled Fractional Delivery at 10,600 nm
CO₂ energy is strongly absorbed by water in tissue. Fractional scanning distributes treatment through a matrix of micro-spots, giving the operator control over coverage, density and thermal delivery.
Move Between Resurfacing and Focused Delivery
The platform supports different handpiece workflows from one console, helping clinics organize full-area resurfacing, detail-focused work and specialty procedures around a consistent operating system.
Fractional Scanning
Patterned micro-spot delivery for controlled skin-resurfacing protocols.
Focused Surgical Mode
Concentrated delivery for cutting, ablation and coagulation within professional scope.
Specialty Probe Workflow
Dedicated probe-based applications where permitted, trained and clinically appropriate.
Final settings must follow professional training, client assessment, applicable regulations and the DioLaz User Manual.
Clinical Design
Purpose-Built Components for Treatment-Room Use

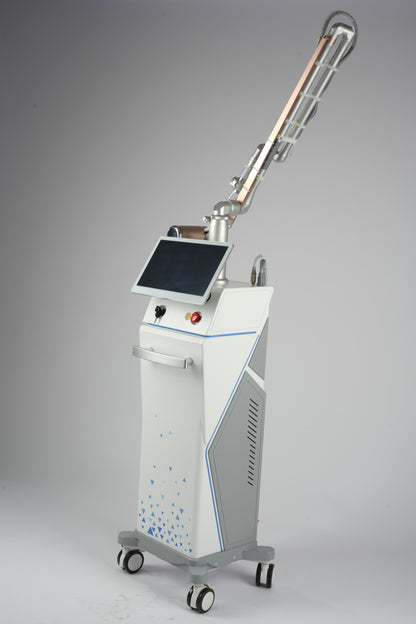

The console, articulated arm and interchangeable handpieces are designed to support positioning, targeting and workflow control across different procedure types.

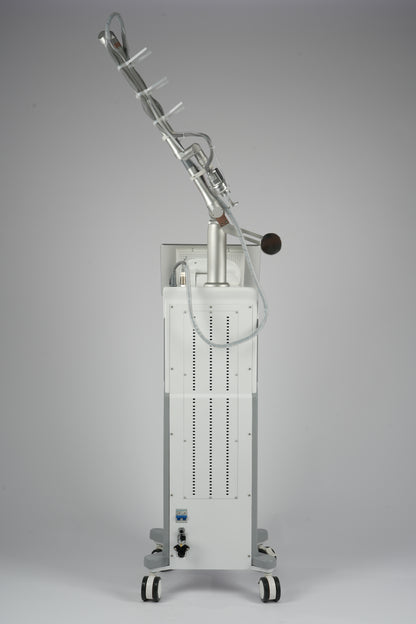

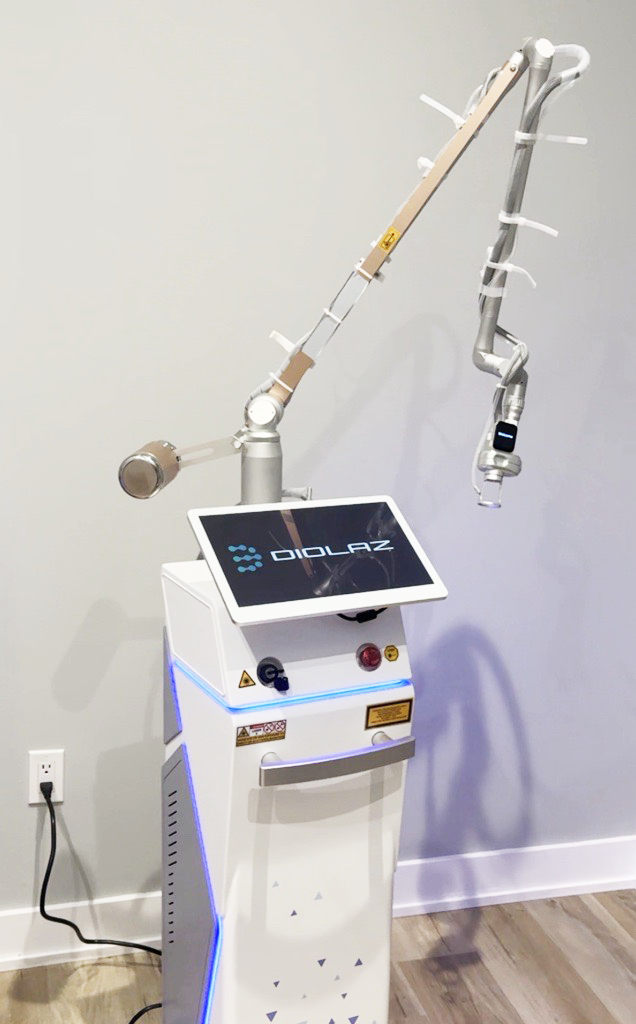

7-Joint Articulated Arm
Mirror-guided beam delivery provides flexible positioning and controlled handpiece movement around the treatment area.

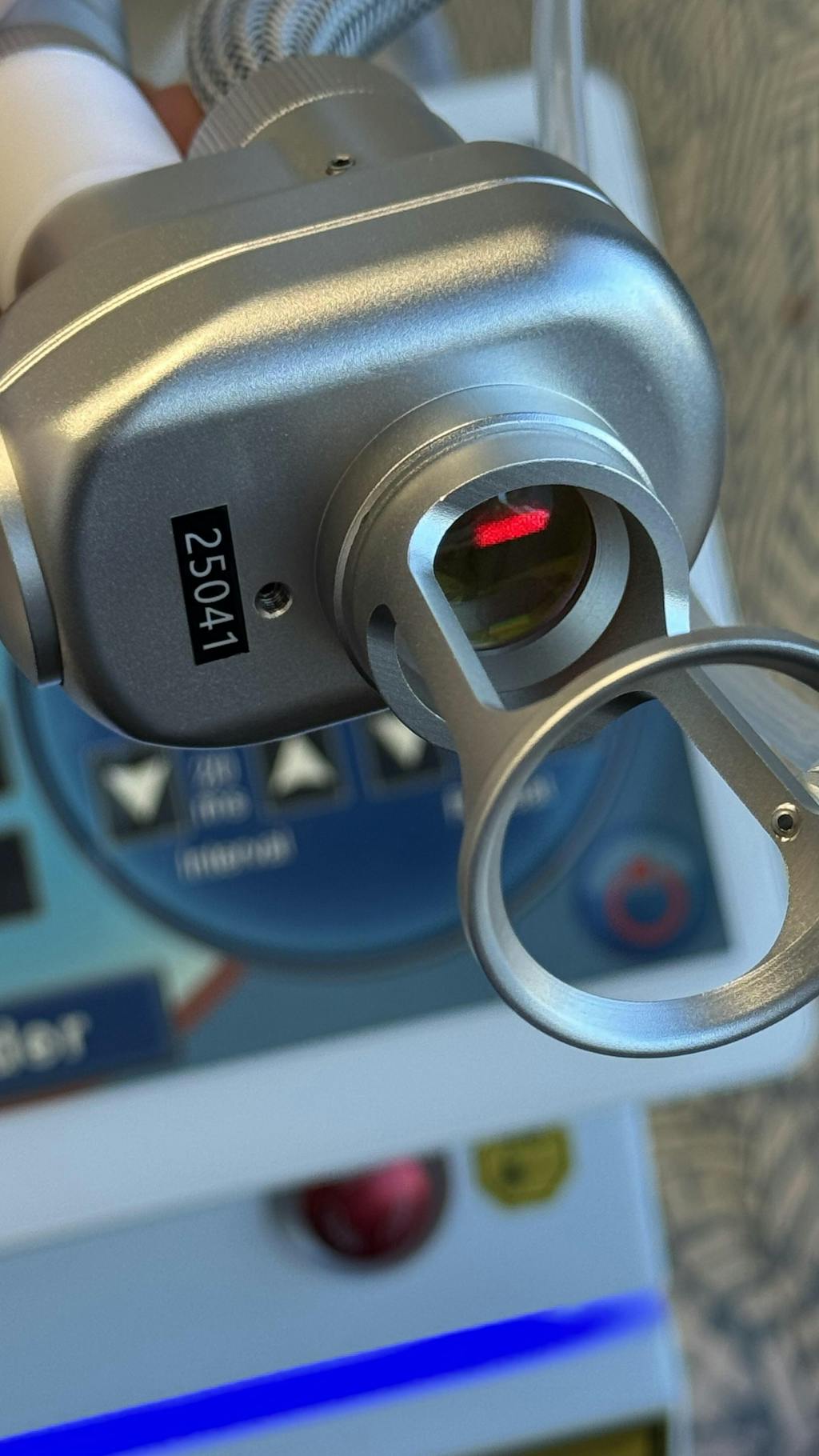

Fractional Scanner
Supports patterned delivery and adjustable scanner settings for full-area and detail-focused resurfacing workflows.
Focused Handpieces
Dedicated tips support precise delivery for selected cutting and ablative procedures by appropriately qualified operators.
Interface & Control
Centralized Parameters for a Repeatable Workflow

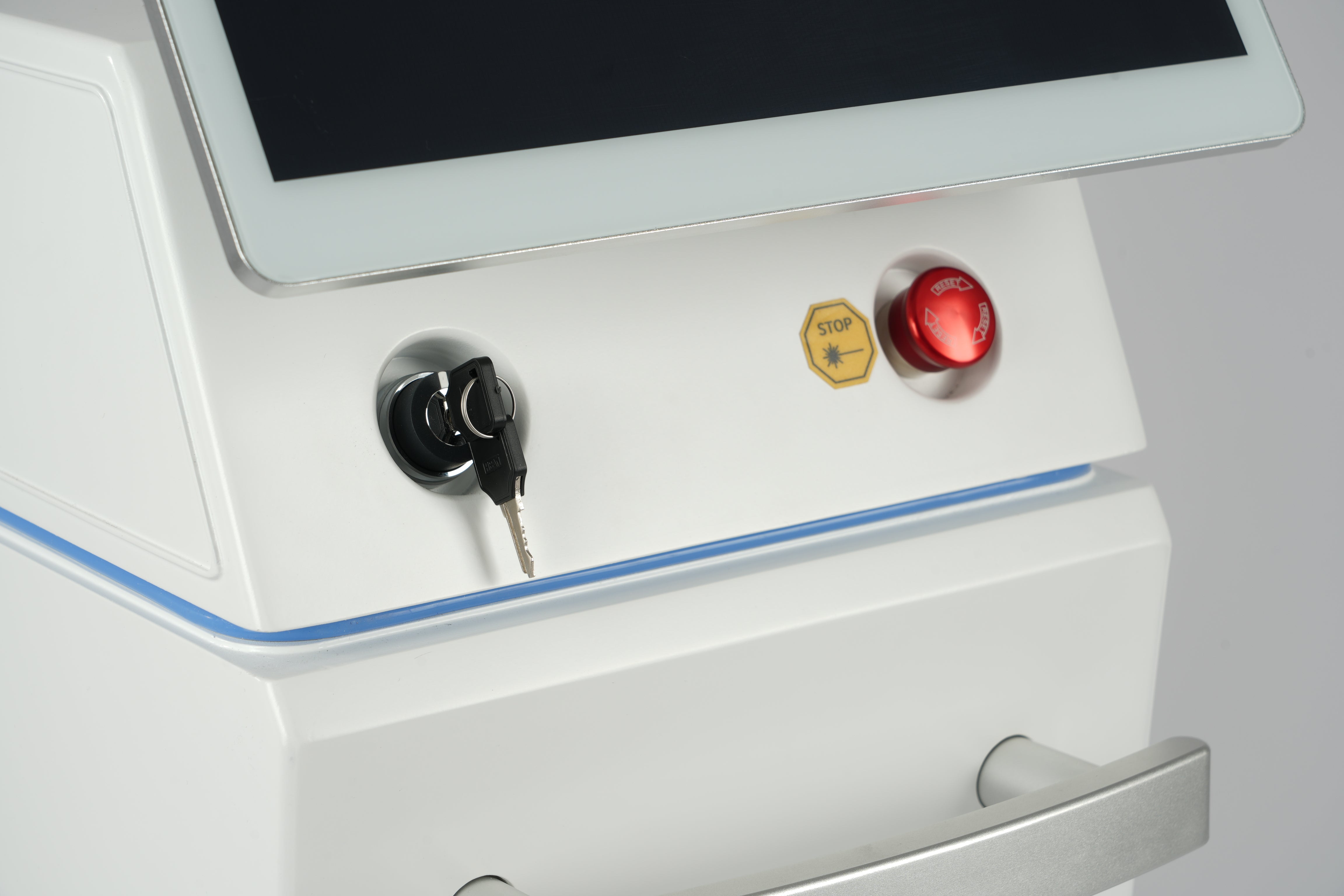

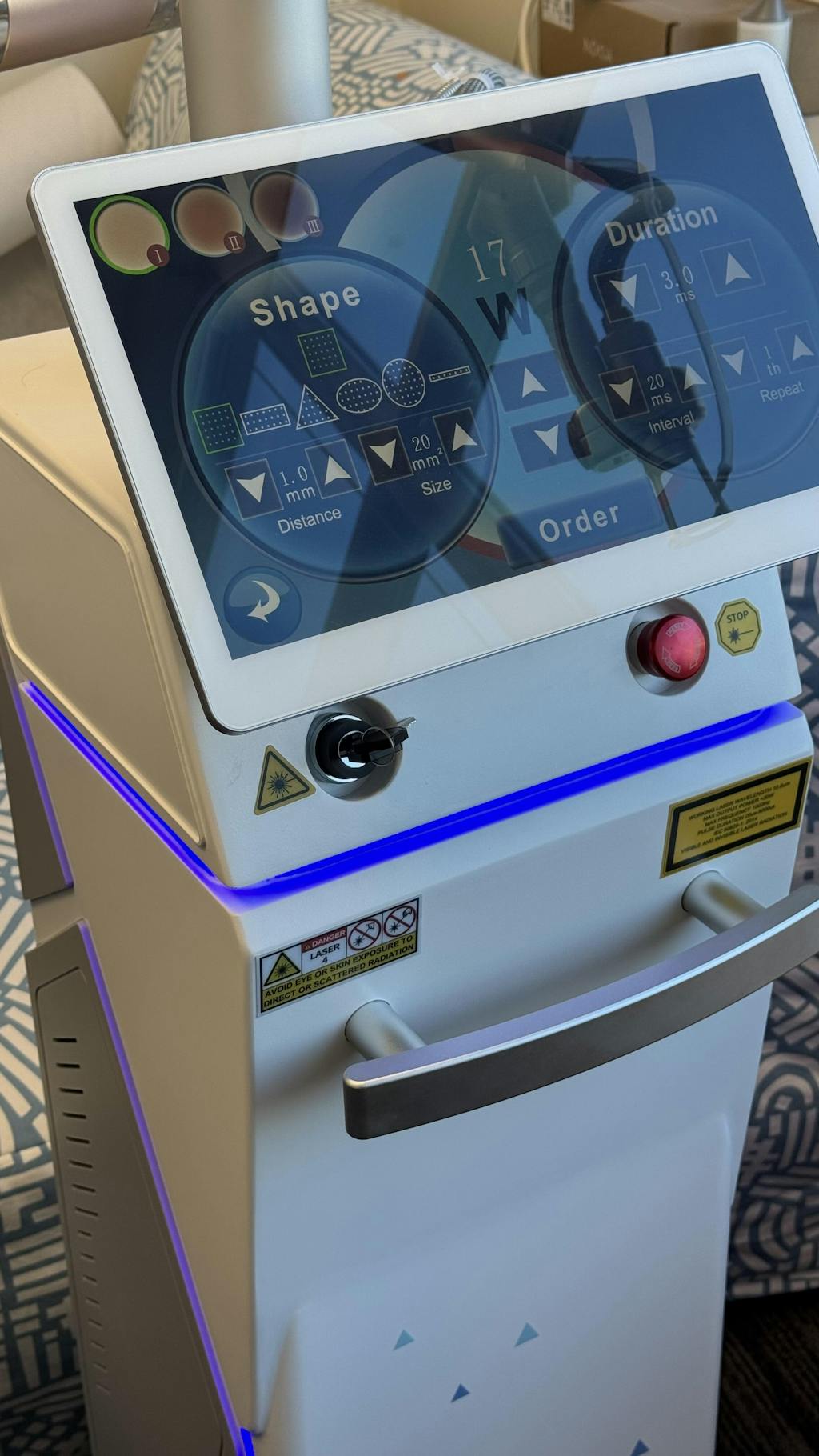

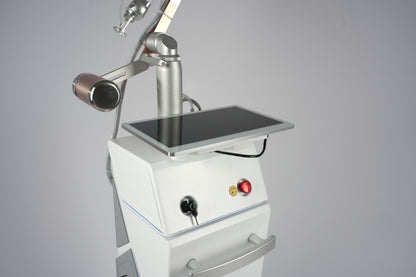

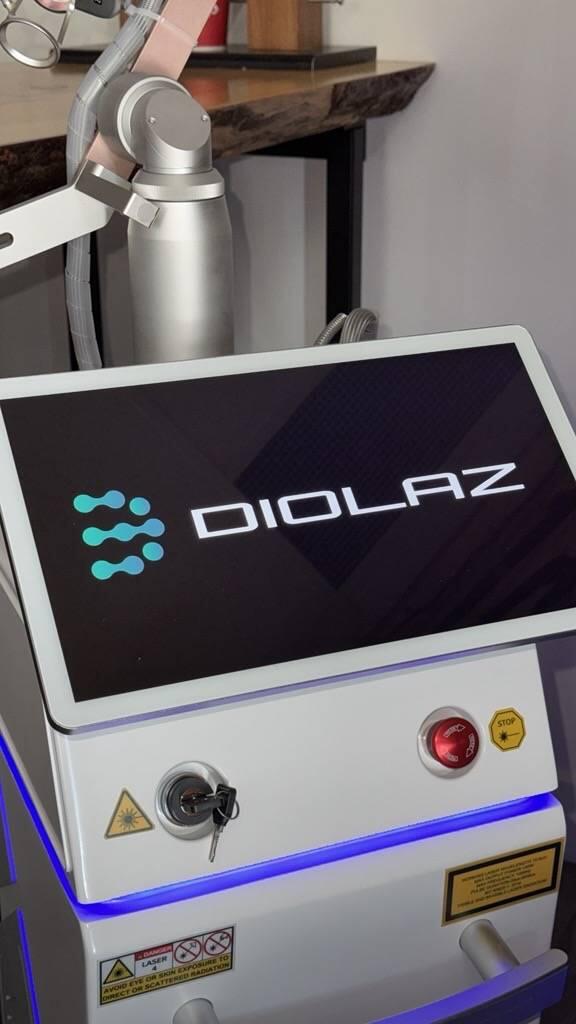

A 12.1-inch colour touchscreen supports parameter selection, programmable presets and multi-language operation. The red aiming beam, foot switch and key-lock controls support professional treatment-room use.
Clinical Applications
Treatment Categories for Professional Practices
These application categories support treatment-menu planning. Client suitability, diagnosis, consent, parameters and operator scope must be assessed for every procedure.
01 Fine Lines & Wrinkles
Supports professional resurfacing protocols for visible fine lines and deeper wrinkles by combining controlled ablation with a collagen-remodelling response.
02 Acne & Selected Scars
Adjustable depth, density and energy support protocol planning for atrophic acne scars and selected surgical or traumatic scars.
03 Photodamage & Uneven Pigmentation
Can support resurfacing of photodamaged areas and uneven pigmentation following appropriate skin assessment and parameter selection.
04 Texture & Enlarged Pores
Used to refine rough texture and the appearance of enlarged pores through epidermal renewal and dermal remodelling.
05 Mild Skin Laxity
Thermal remodelling can support gradual improvement in mild laxity and crepey texture in appropriately selected clients.
06 Stretch Marks
Fractional treatment patterns can be incorporated into protocols intended to improve the texture and colour contrast of stretch marks.
07 Selected Benign Lesion Procedures
Focused mode may support selected benign lesion procedures by appropriately qualified professionals, subject to diagnosis, scope of practice and local requirements.
08 Intimate Treatment Workflows
Dedicated probe-based workflows may support intimate treatment protocols where legally permitted and performed by appropriately trained professionals.
Reference Information
Regulatory, Technical & Package Details
The sections below are open by default for faster B2B review. They can still be collapsed individually when less detail is needed.
Health Canada Licence Details
Regulatory Organization
Health Canada — Medical Devices Active Licence Listing (MDALL).
Licence Status
Active Class III Medical Device Licence.
Licence Number
Medical Device Licence No. 114258.
Date of Issue
2025-10-31.
Licence Metadata
Licence Type: System; Licence Name: “FRACTIONAL CO2 LASER THERAPY SYSTEMS”; Licence Holder (Manufacturer): DioLaz Canada Inc.
Technical Specifications
Laser Type
Fractional CO₂ laser, 10,600 nm wavelength.
Output Power
Up to 40 W, adjustable.
Operating Modes
Fractional scanned mode; continuous-wave surgical mode.
Pulse Duration
0.4–4 ms, configurable.
Focal Spot
≤0.4 mm.
Scanner Spot Size
0.1–2 mm, adjustable.
Beam Delivery
7-joint articulated arm with mirror-guided delivery.
Aiming Beam
650 nm red diode laser, <5 mW.
Cooling System
Air-cooled design with internal circulation support for laser-tube stability.
User Interface
12.1-inch high-definition colour touchscreen with multi-language support and programmable presets.
System Power
1000 W.

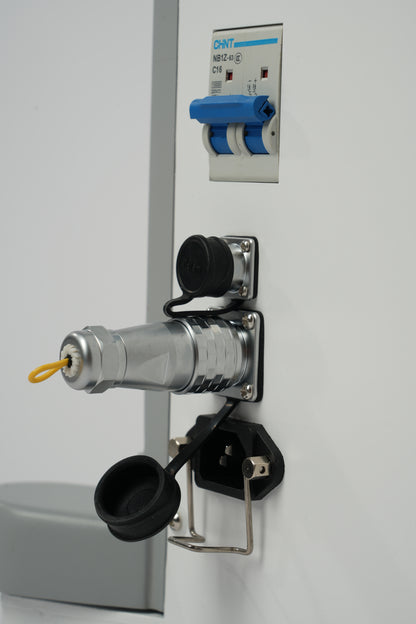

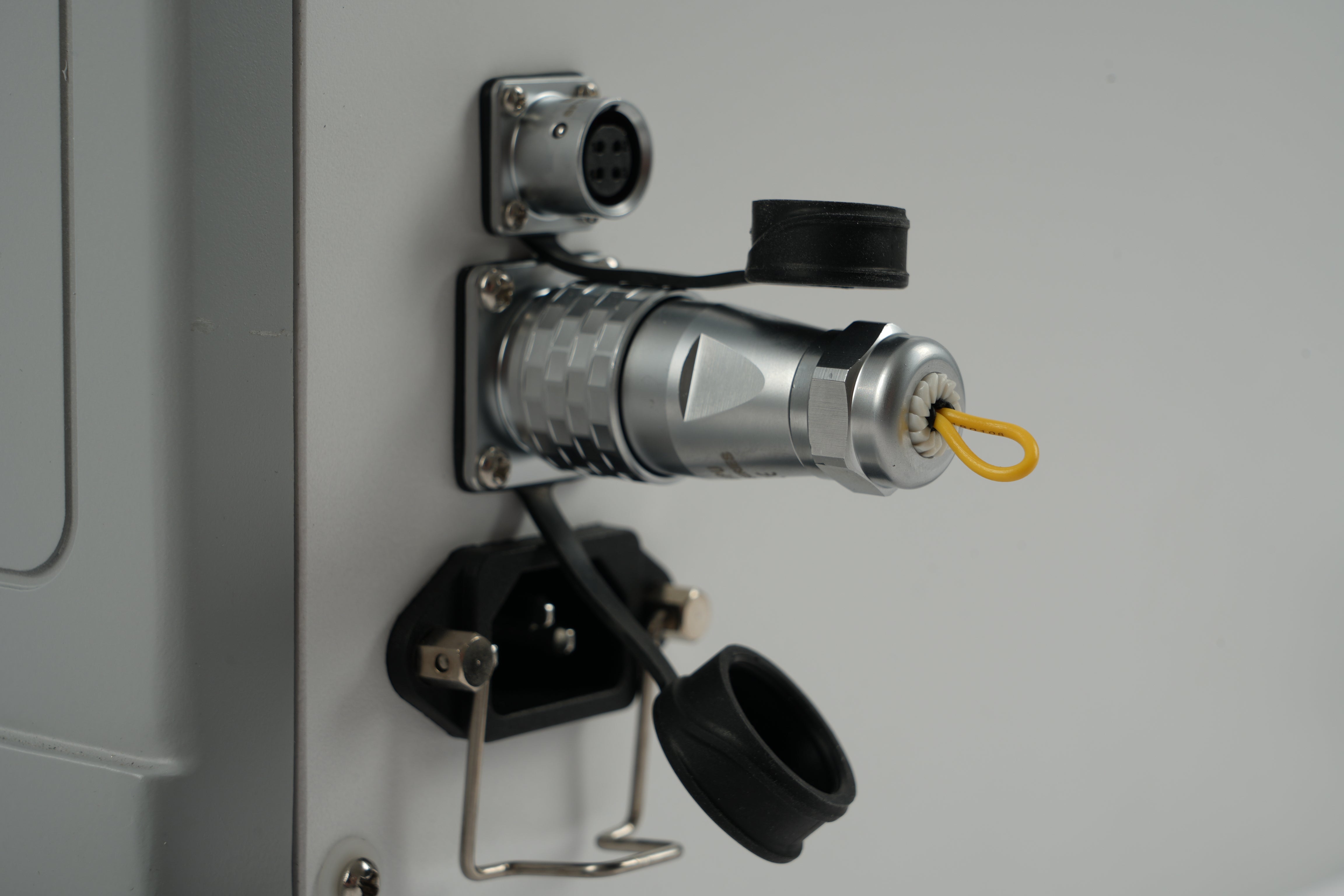

Electrical Requirements
110–240 V AC, 50/60 Hz.
Handpieces, Accessories & Clinic Planning

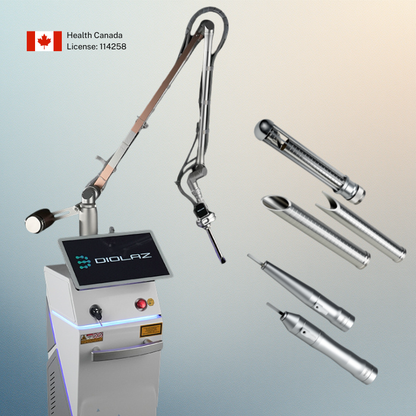

Treatment Handpieces
Fractional scanner handpiece, focused surgical handpiece and specialty intimate-treatment handpiece.
Operating Accessories
Protective doctor and patient eyewear, foot pedal, power cord and key-lock switch.
Pre-Installation Review
Confirm room access, electrical service, laser-safety controls and local professional requirements before installation.
Final inclusions may vary by model, handpiece selection and order package. Confirm the supplied configuration with the DioLaz sales team before purchase.
For professional use only.
Contraindications, precautions, and treatment parameters should be reviewed in the User Manual before clinical use.
